High Voltage Solid State Relays

Behlke high voltage solid state relays are available from High Voltage Connection, U.S. distributor for Behlke.



Solid State Relay Description	Technology	Contacts
General Purpose	MOSFET	SPST
High di/dt	MOSFET	SPST
Low Coupling Capacitance	MOSFET	SPST
Low On-Resistance	MOSFET	SPST
AC Voltage	MOSFET	SPST
General Purpose	Thyristor/MCT	SPST
General Purpose	IGBT	SPST
Push-Pull	MOSFET	SPDT



Request a quote.

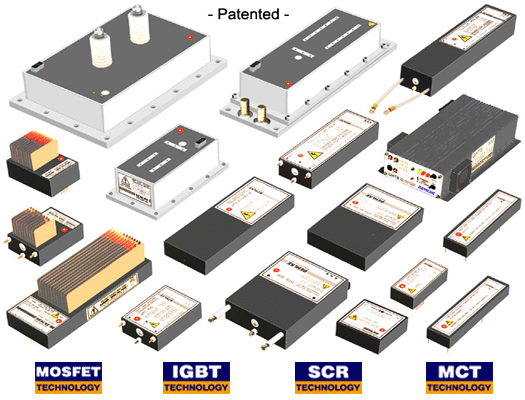

Behlke High Voltage Solid State Relays

These are versatile switching elements with true relay characteristics, and are used as solid state relays in many applications. These high speed relays range from 500V to 120 kV, with rise times as fast as 1 ns.

Currents range from microamps to kiloamps, with di/dt's up to 32kA/µs.

For solid state relay applications, please see the variable on-time products. The on-time is controllable by TTL or other logic signal.

HV Relay Technologies

MOSFET, IGBT, and thyristor technologies help make Behlke the world leader in high voltage solid state relays.

Behlke Distributor

In the U.S., please contact us or request a quote. We can also provide application and selection assistance.

Ordering Information

To order Behlke high speed, high voltage solid state relays please contact us.
